Product Series
- DESCRIPTION
-
- Commodity name: PZD983 / PZD984

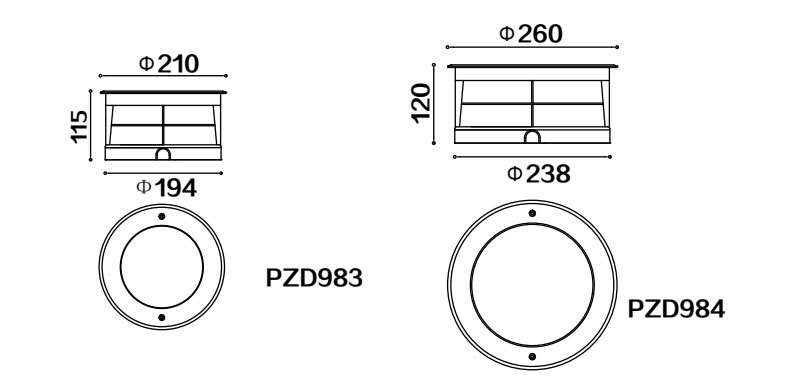

Schematic diagram of product dimensions
Product parameters
Product model PZD983/PZD984 Control mode ON-OFF The type of light LED DMX512 Chip brand CREE Working environment -25℃~55℃ OSRAM Net weight of the luminaire 2kg / 3kg Lumileds Electrical insulation level Class I / III Number of chips 12pcs / 24 pcs Service life More than 50,000 hours MAX power 18W / 36W Lamp color Black, gray (customizable) Color temperature 2200-6000K/R/G/B 50% beam angle 8° 15°30° 45° 60° Exit method Exposed bare lines Color rendering index >Ra80 Installation method Embedded Input voltage DC24V / AC220V Number of boxes 8 / 6pcs Degree of protection IP67 Outer carton specifications 45*45*28cm / 54*28*42cm
