Product Series
PZD980 / PZD981 / PZD982
E-mail：pz_lighting@163.com
Share
Category
Underground Light
Keyword
- DESCRIPTION
-
- Commodity name: PZD980 / PZD981 / PZD982

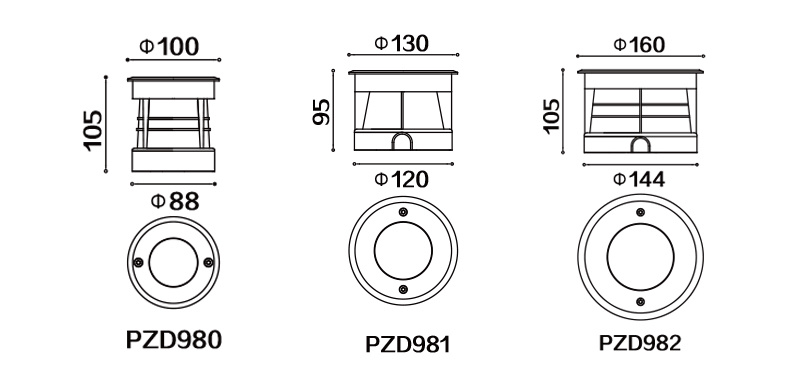

Schematic diagram of product dimensions
Product parameters
Product model PZD980/PZD981/PZD982 Control mode ON-OFF The type of light LED DMX512 Chip brand CREE Working environment -25℃~55℃ OSRAM Net weight of the luminaire 0.7kg / 0.9kg / 1.4kg Lumileds Electrical insulation level Class I / III Number of chips 3 pcs / 5 pcs / 6 pcs Service life More than 50,000 hours MAX power 4.5W / 7.5W / 9W Lamp color Black, gray (customizable) Color temperature 2200-6000K/R/G/B 50% beam angle 8° 15°30° 45° 60° Exit method Exposed bare lines Color rendering index >Ra80 Installation method Embedded Input voltage DC24V / AC220V Number of boxes 30 / 18 / 12pcs Degree of protection IP67 Outer carton specifications 56*34*25cm / 43*29*36cm / 52*36*27cm
